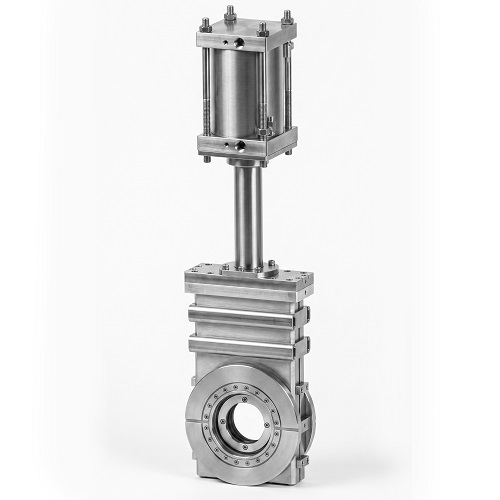

CF150 All Metal Gate Valve Pneumatic
Bakeable All Metal Valves

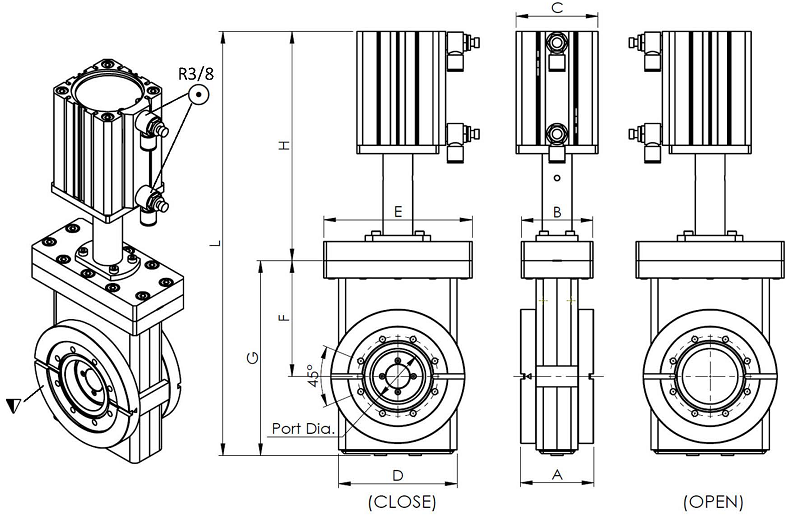

| select | |
| Model No. | GVC-NS-CF63-P |
| Parts No. | GC3CB61 |
| A | 84 |
| B | 82 |
| C | 94 |
| D | 136 |
| E | 170 |
| F | 133 |
| G | 224 |
| H | 263 |
| L | 487 |
| Bolt Size*No | M8*8 |
| Bolt P.C.D. | 92.1 |
| Bonnet seal | AL |
| Flange O.D. | 154 |
| Port Dia. | 63.7 |
| Thread Depth | 12 |
| Select | Model No. | Parts No. | A | B | C | D | E | F | G | H | L | Bolt Size*No | Bolt P.C.D. | Bonnet seal | Flange O.D. | Port Dia. | Thread Depth |
| GVC-NS-CF63-P | GC3CB61 | 84 | 82 | 94 | 136 | 170 | 133 | 224 | 263 | 487 | M8*8 | 92.1 | AL | 154 | 63.7 | 12 |
CF150 All Metal Gate Valve (Pneumatic)
Technical Data
|
Document Name |
CF150 All Metal Gate Valve- Pneumatic |
|
|
Model |
GVC-NS-CF150-P |
|
|
Port size |
CF150/Ø150 |
|
|
Actuators |
Pneumatic |
|
|
Material |
Body & Bonnet |
316L S.S. |
|
Flange |
316LN-ESR S.S |
|
|
Carriage |
316L S.S. |
|
|
Gate |
INCONEL |
|
|
Bellows |
316L S.S. |
|
|
Bonnet sealing |
OFHC copper gasket |
|
|
CF Flange sealing |
OFHC copper gasket |
|
|
Feedthrough |
Bellows |
|
|
Leak rate |
< 1x10-10 mbar*l/s |
|
|
Pressure range |
UHV to 1.2 bar (abs) |
|
|
Differential pressure on the gate |
≤ 1.2 Bar |
|
|
Differential pressure at opening |
≤ 100 mbar |
|
|
Cycles until first service |
6000 |
|
|
Temperature |
Valve body ≤ 240 °C, Actuator ≤ 140 °C (for max. 100h) |
|
|
Heating and cooling rate |
≤ 50°C h-1 |
|
|
Compressed air |
5 - 7 bar |
|
|
Actuation time |
Opening ≤ 12sec, Closing ≤ 12sec |
|
|
Mounting position |
Any |
|
|
Weight |
About 45 Kg |
|
